Description

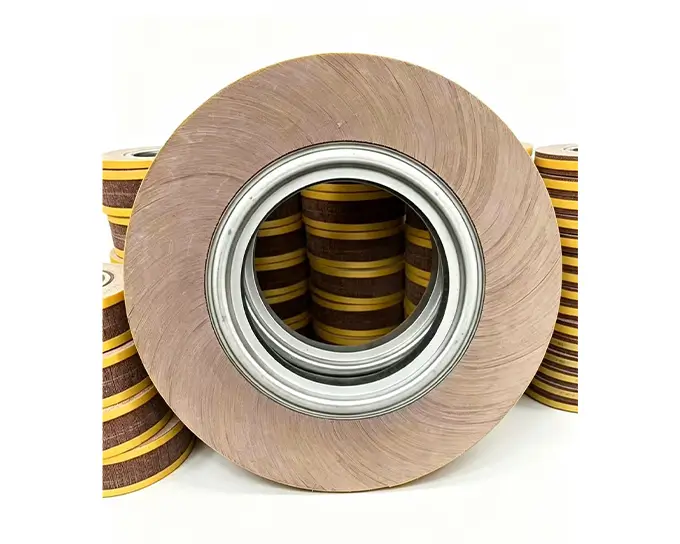

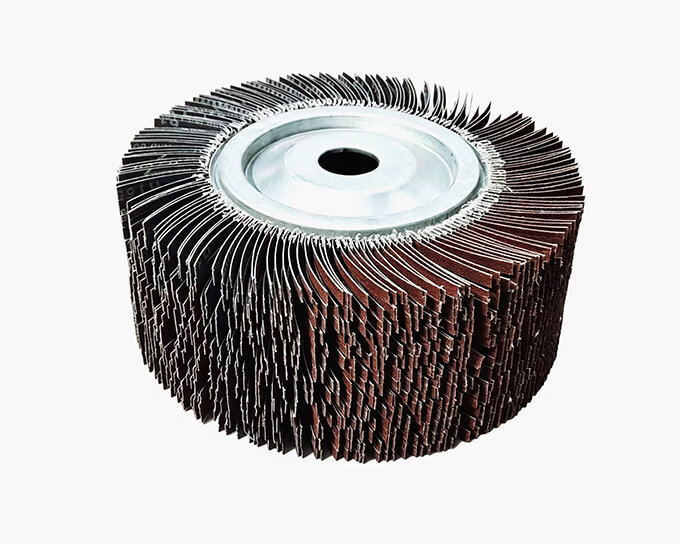

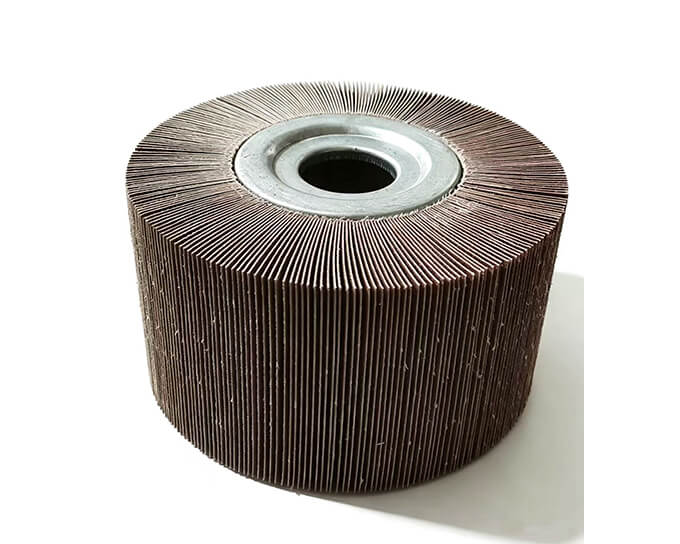

This 150mm flap wheel is made by overlapping abrasive cloth flaps around a metal core, 100mm wide with a 32mm bore. As each flap wears down, the next layer takes over, so the wheel keeps a consistent cutting performance through its whole life – and keeps the workpiece cool by working flap-by-flap instead of with one solid face.
The wheel blends curves, edges and flat surfaces without digging in or gouging, and the flexible flaps follow the shape of the part. With a 32mm bore it fits standard bench grinders and pedestal machines.
Produced in our 25-year-old factory with precise flap layering and balancing, available in a full range of sizes, grits and widths. Factory direct with fast worldwide delivery.
Key Specifications
| Item | Details |
| Wheel Diameter | 150 mm |
| Width | 100 mm |
| Bore | 32 mm |
| Abrasive | Brown Aluminium Oxide (zirconia on request) |
| Backing | Cloth (X-weight) |
| Bond | Resin |
| Grit Range | P40 – P320 (custom on request) |
| Max. Speed | Wheel and machine dependent, balanced for high speed |
| Packing | 1 pc / box, custom carton available |
| MOQ | 100 pcs |
| OEM | Custom size, grit and packing available |
Applications
- Grinding, deburring and finishing on metal, wood and plastic
- Blending curves, edges, corners and profiles smoothly
- Removing rust, scale and light weld defects
- Suitable for bench grinders and pedestal grinding machines
- Fits 32 mm spindles
FAQ
They are the wheel’s outside diameter, width and bore – 150 mm outside, 100 mm wide, 32 mm bore.
It grinds, deburrs and finishes curved and flat surfaces without gouging. The layered flaps keep cutting as they wear and run cooler than solid wheels.
P40 to P320 as standard, custom grits on request.
Yes, we can produce custom bores and also supply bushes/adjustable bore rings for common spindle sizes.
Yes – custom size, grit, colour, label and carton are all available from our factory.
